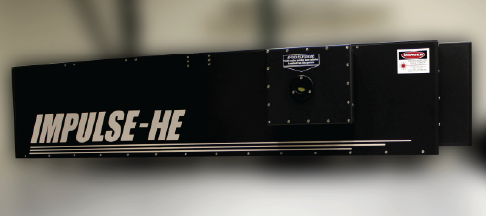

The IMPULSE-HE is the next-generation laser in the IMPULSE family, delivering higher pulse energy while maintaining the key features that have made the original Model IMPULSE renowned. Built upon an advanced all-diode-pumped, Yb-doped fiber oscillator/amplifier system, it offers variable pulse energies exceeding 70μJ, with user-adjustable repetition rates ranging from single-shot to 25MHz.
At its core, IMPULSE-HE revolutionizes mode-locked oscillator/amplifier technology. By integrating a Yb-doped fiber-oscillator/fiber-amplifier architecture, it combines the low-noise stability of solid-state operation with the superior spatial mode quality of fiber lasers.
Designed as a compact, robust, all-in-one femtosecond pulse source, IMPULSE-HE ensures ease of operation, exceptional stability, and reliability. With fully computer-controlled parameters, it seamlessly interfaces with workstations or experimental setups. Remote accessibility enables comprehensive control over all laser parameters and diagnostics.
- Cutting-edge Yb-fiber oscillator/amplifier design powered by direct-diode pumping
- Fully solid-state, all-diode pumped architecture ensuring reliability and efficiency
- Compact, one-box system built for durability and seamless integration
- High-power output exceeding 20 Watts at 500 kHz and higher repetition rates
- Flexible repetition rate ranging from single-shot to 25 MHz for ultimate versatility
- Smart computer control with web-enabled access for remote operation
- Exceptional beam quality delivering precision and consistency
- Low-noise performance with continuous-wave pumping for stability
- Long-term reliability designed for high-performance applications
Performance Parameters
| Repetition rate: | User adjustable via embedded computer from single-shot to 25 MHz (in increments of the oscillator repetition rate divided by a whole integer |
| Pulse energy: | User adjustable via embedded computer up to 40uJ |
| Average power output: | User adjustable via computer up to 20 Watts |
| Pulse width: | User adjustable via computer between < 250 fs and > 8 ps |
| Transverse mode: | TEM00 |
| M2: | < 1.2 |
| Variation in pulse energy: | < 1% rms |
| Center Wavelength: | 1.03 microns |
Ideal for:
- Precision Micromachining – Enables ultrafast, high-resolution material processing
- Advanced Photopolymerization – Ideal for microfabrication and rapid prototyping
- Direct-Write Waveguide Fabrication – Creates custom optical structures with precision
- High Signal-to-Noise Pump-Probe Spectroscopy – Unlocks ultrafast dynamics studies
- OPA/NOPA Pumping – Facilitates efficient broadband generation for nonlinear optics
